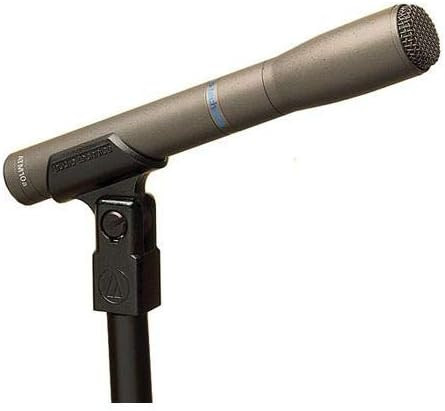

Audio-Technica AT 8010 Omnidirectional Condenser Microphone

Description

Audio-Technica AT 8010 Omnidirectional Condenser Microphone Overview:

Ideal for interviews, pickup of audience reaction, and musical events, the AT8010 features an omnidirectional polar pattern that provides maximum ambient pickup. The microphone provides an extremely smooth, extended response on- and off-axis. Operates on battery or phantom power.

Features:


• Ideal for interviews, group vocals, strings, cymbal overheads, acoustic guitar and piano
• Omnidirectional polar pattern provides maximum ambient pickup
• Extremely smooth, extended response on- and off-axis
• Low sensitivity to popping and overload
• Operates on battery or phantom power
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Specifications:


• ELEMENT: Fixed-charge back plate permanently polarized condenser
• POLAR PATTERN: Omnidirectional
• FREQUENCY RESPONSE: 20-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/Octave
• OPEN CIRCUIT SENSITIVITY: Phantom: –44 dB (6.3 mV) re 1V at 1 Pa ; Battery: –45 dB (5.6 mV) re 1V at 1 Pa
• IMPEDANCE: Phantom: 250 ohms ; Battery: 300 ohms
• MAXIMUM INPUT SOUND LEVEL: Phantom: 137 dB SPL, 1 kHz at 1% T.H.D. ; Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): Phantom: 113 dB, 1 kHz at Max SPL ; Battery: 99 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 70 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
• BATTERY TYPE: 1.5V AA/UM3
• BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)
• SWITCH: Flat, roll-off
• WEIGHT: 165 g (5.8 oz)
• DIMENSIONS: 178.0 mm (7.01") long, 26.0 mm (1.02") head diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; battery; soft protective pouch
• AUDIO-TECHNICA CASE STYLE: S4
