DGX-670 |

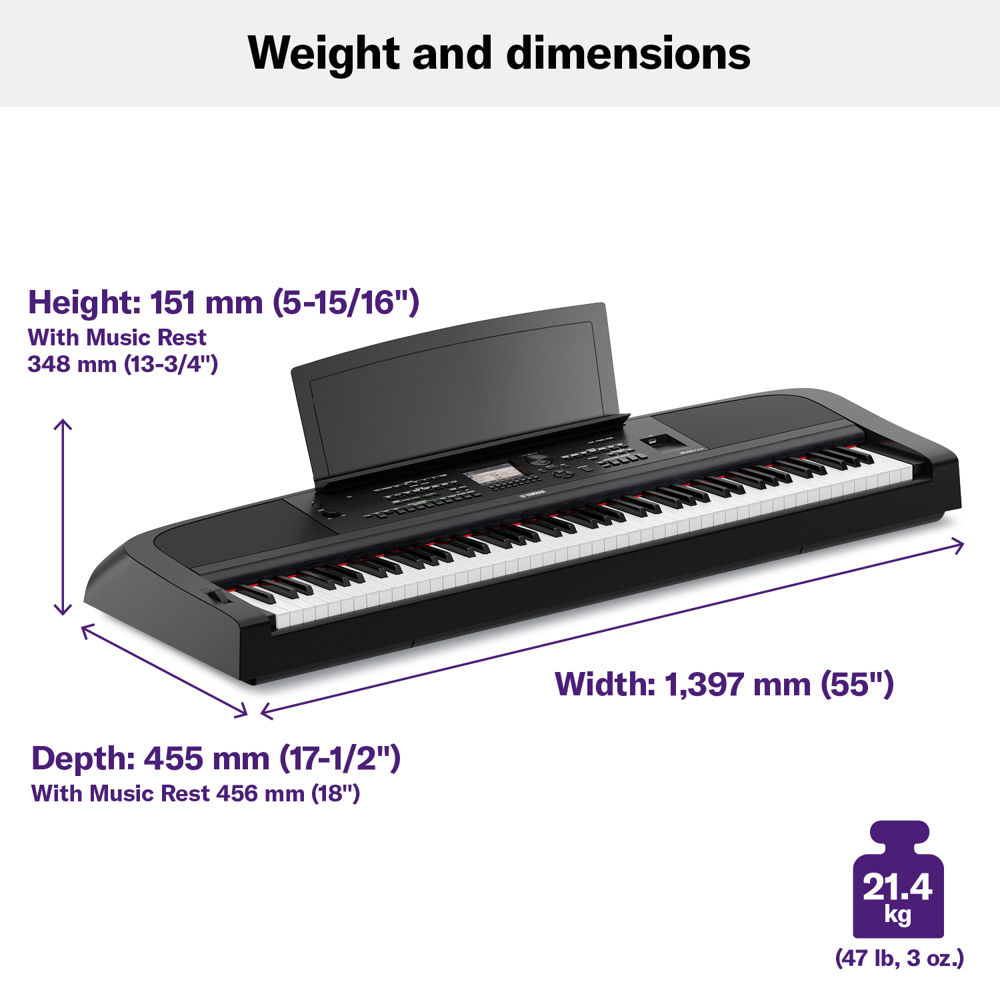

Dimensions | Width |
1,397 mm (55") |
Height |
151 mm (5-15/16") |
Depth |
445 mm (17-1/2”) |
Weight | Weight |
21.4 kg (47 lb, 3 oz) |
Keyboard | Number of Keys |
88 |

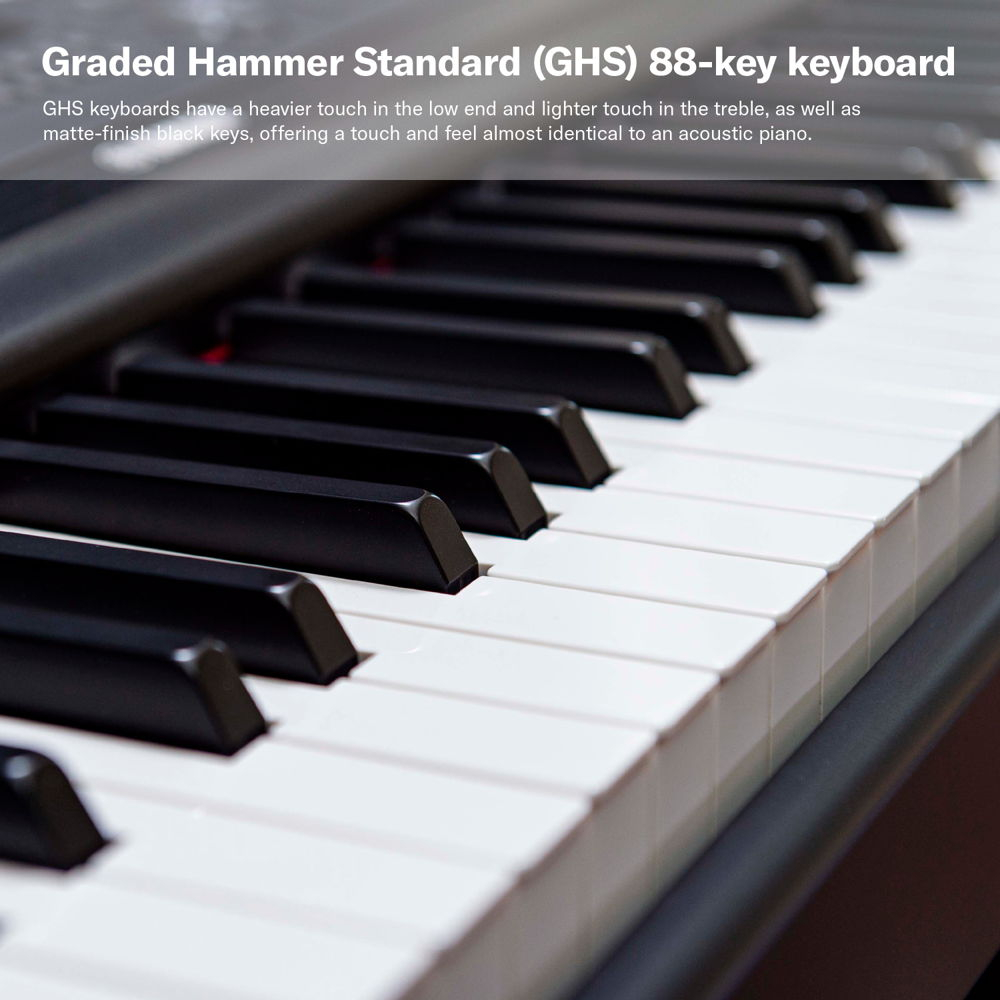

Type |
GHS (Graded Hammer Standard) keyboard with matte black keytops |
Touch Response |
Hard2 / Hard1 / Medium / Soft1 / Soft2 |
Other Controllers | Pitch Bend |
Yes |
Display | Type |
TFT Color WQVGA LCD |
Size |
4.3 inch (480 × 272 dots) |
Score Display Function |
Yes |
Lyrics Display Function |
Yes |
Text Viewer Function |
Yes |
Language |
English, German, French, Spanish, Italian |
Panel | Language |
English |
Tone Generation | Piano Sound |
Yamaha CFX |
VRM |
Yes |
Key-off Samples |
Yes |
Smooth Release |
Yes |
Polyphony | Number of Polyphony (Max.) |
256 |
Preset | Number of Voices |
601 Voices + 29 Drum / SFX Kits |
Featured Voices |
9 VRM Voices, 49 Super Articulation Voices, 23 MegaVoices, 11 Natural! Voices, 26 Sweet! Voices, 53 Cool! Voices, 68 Live! Voices |
Compatibility |
XG, GS, GM, GM2 |
Types | Reverb |
58 Preset + 30 User |
Chorus |
106 Preset + 30 User |
DSP |
295 Preset + 30 User |
Master Compressor |
5 Preset + 30 User |
Master EQ |
5 Preset + 30 User |
Part EQ |
27 Parts |
Intelligent Acoustic Control (IAC) |
Yes |
Stereophonic Optimizer |
Yes |
Functions | Dual |
Yes |
Split |
Yes |
Preset | Number of Preset Styles |
263 |
Featured Styles |
215 Pro Styles, 19 Session Styles, 29 Pianist Styles |
Fingering |
Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard, Smart Chord |
Style Control |
INTRO, MAIN VARIATION × 4, BREAK, ENDING, SIMPLE |
Custom | Style Creator |
Yes |
Other Features | One Touch Setting (OTS) |
4 for each Style |
Adaptive Style |
Yes (50 Styles) |
Unison & Accent |
Yes (50 Styles) |
Compatibility |
Style File Format (SFF), Style File Format GE (SFF GE) |
Preset | Number of Preset Songs |
100 |
Recording | Number of Tracks |
16 |
Data Capacity |
Approx. 1 MB / Song |
Compatible Data Format | Playback |
SMF (Format 0, Format 1), XF |
Recording |
SMF (Format 0) |
Audio Recorder/Player | Recording Time (max.) |
80 minutes / Song |
USB Audio Recorder | Playback |
WAV (44.1 kHz, 16-bit, stereo) |
Recording |
WAV (44.1 kHz, 16-bit, stereo) |
USB Audio | Vocal Cancel |
Yes |
Pitch Shift |
Yes |
Time Stretch |
Yes |
Miscellaneous | Piano Room |
Yes |
Registration | Number of Buttons |
4 |
Control |
Registration Sequence, Freeze |
Playlist | Number of Records |
500 |
Lesson/Guide | Lesson/Guide |
Follow Lights, Any Key, Karao-Key, Your Tempo |
Overall Controls | Metronome |
Yes |
Tempo Range |
5 – 500, Tap Tempo |
Transpose |
-12 – 0 – +12 |
Tuning |
414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) |
Scale Type |
9 Types |
USB audio interface |
44.1 kHz, 16-bit, stereo |
Bluetooth |
Yes (Audio) |
Storage | Internal Memory |
Approx. 20 MB |
External Drives |
USB flash drive |

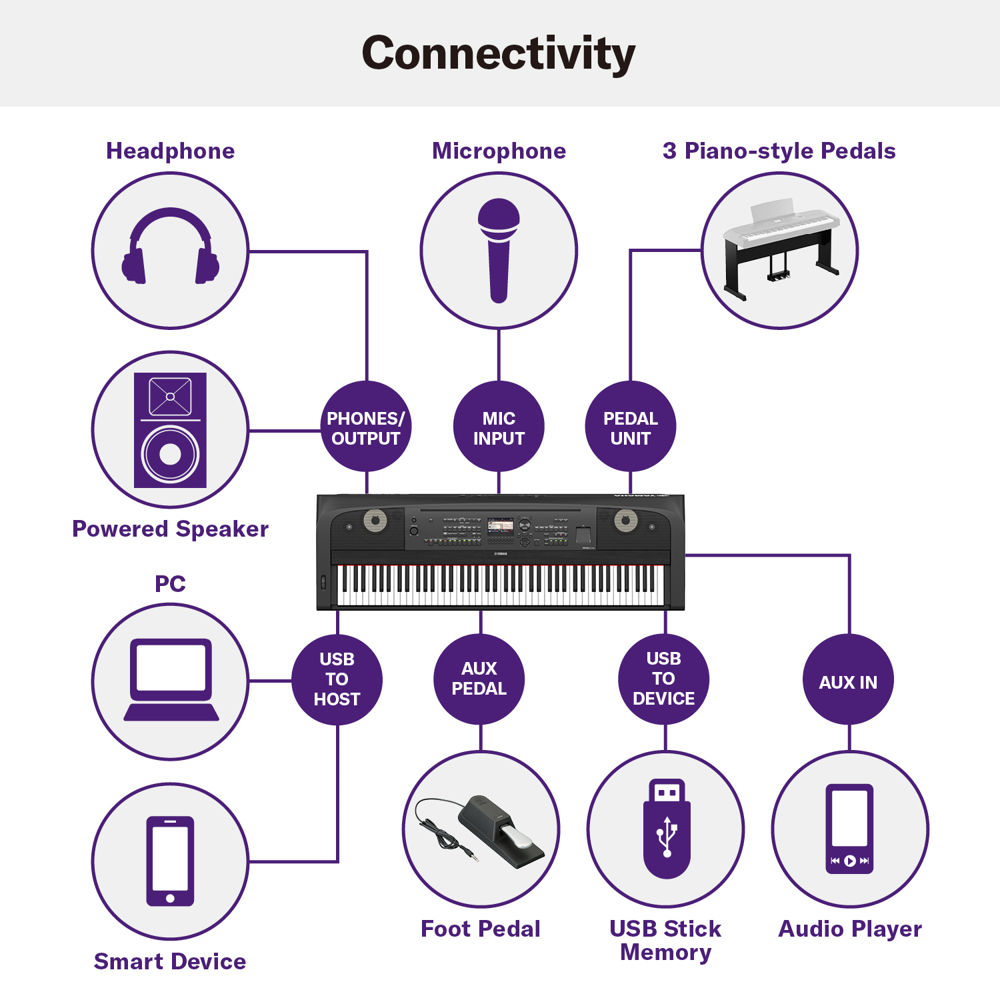

Connectivity | DC IN |
16 V |
Headphones |
Standard stereo phone jack |
Microphone |
Standard mono phone jack |
AUX IN |
Yes (Stereo mini jack) |
AUX Pedal |
Yes |
Pedal Unit |
Yes |
USB TO DEVICE |
Yes |
USB TO HOST |
Yes |
Amplifiers |
6W x 2 |
Speakers |
12 cm x 2 + 5 cm x 2 |
AC Adaptor |
PA-300C |
Power Consumption |
14.5 W (When using PA-300C AC adaptor) |
Auto Power Off |
Yes |
Accessories |
Owner’s Manual, Online Member Product Registration, Music rest. |
Separately Sold Accessories |

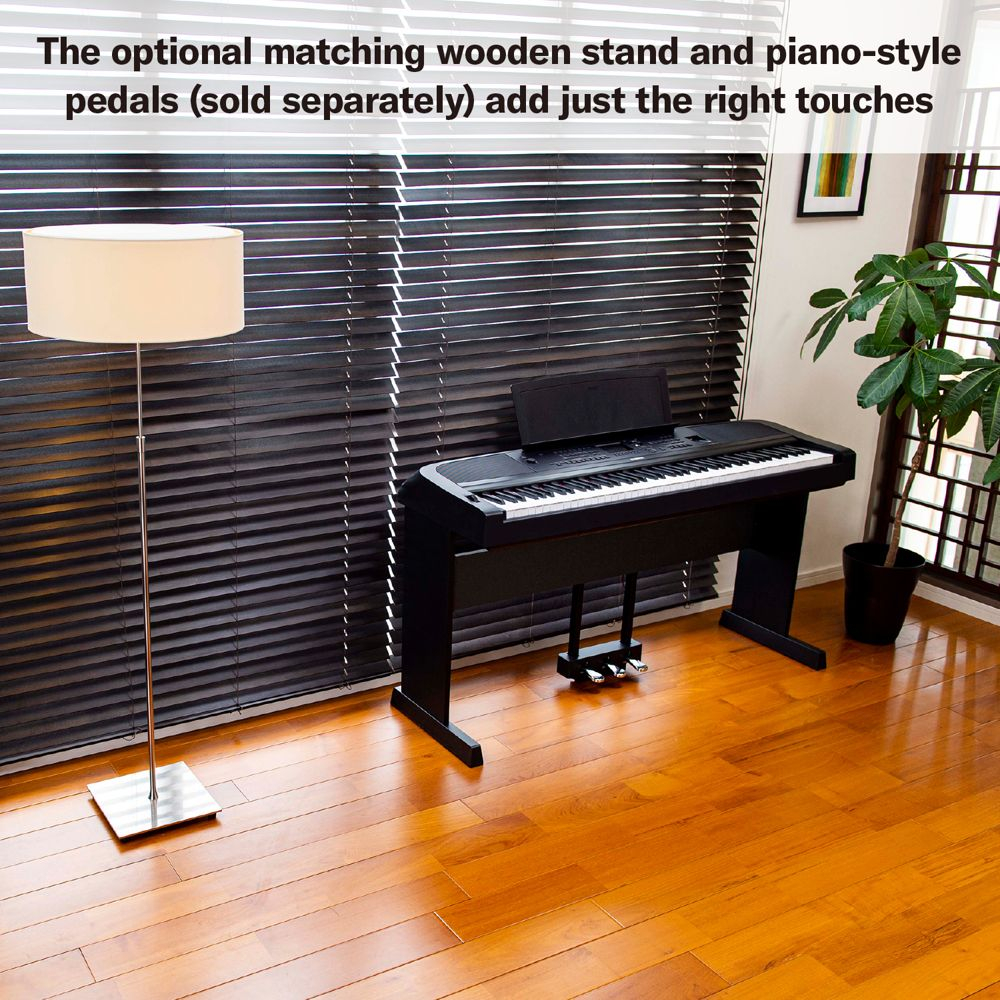

Keyboard stand (L-300B / L-300WH), Pedal unit (LP-1B / LP-1WH), AC adaptor (PA-300C), Headphones (HPH-150 / HPH-100 / HPH-50), Foot pedal (FC3A), Footswitch(FC4A / FC5), USB wireless LAN adaptor (UD-WL01), Wireless MIDI adaptor (UD-BT01) |
|
