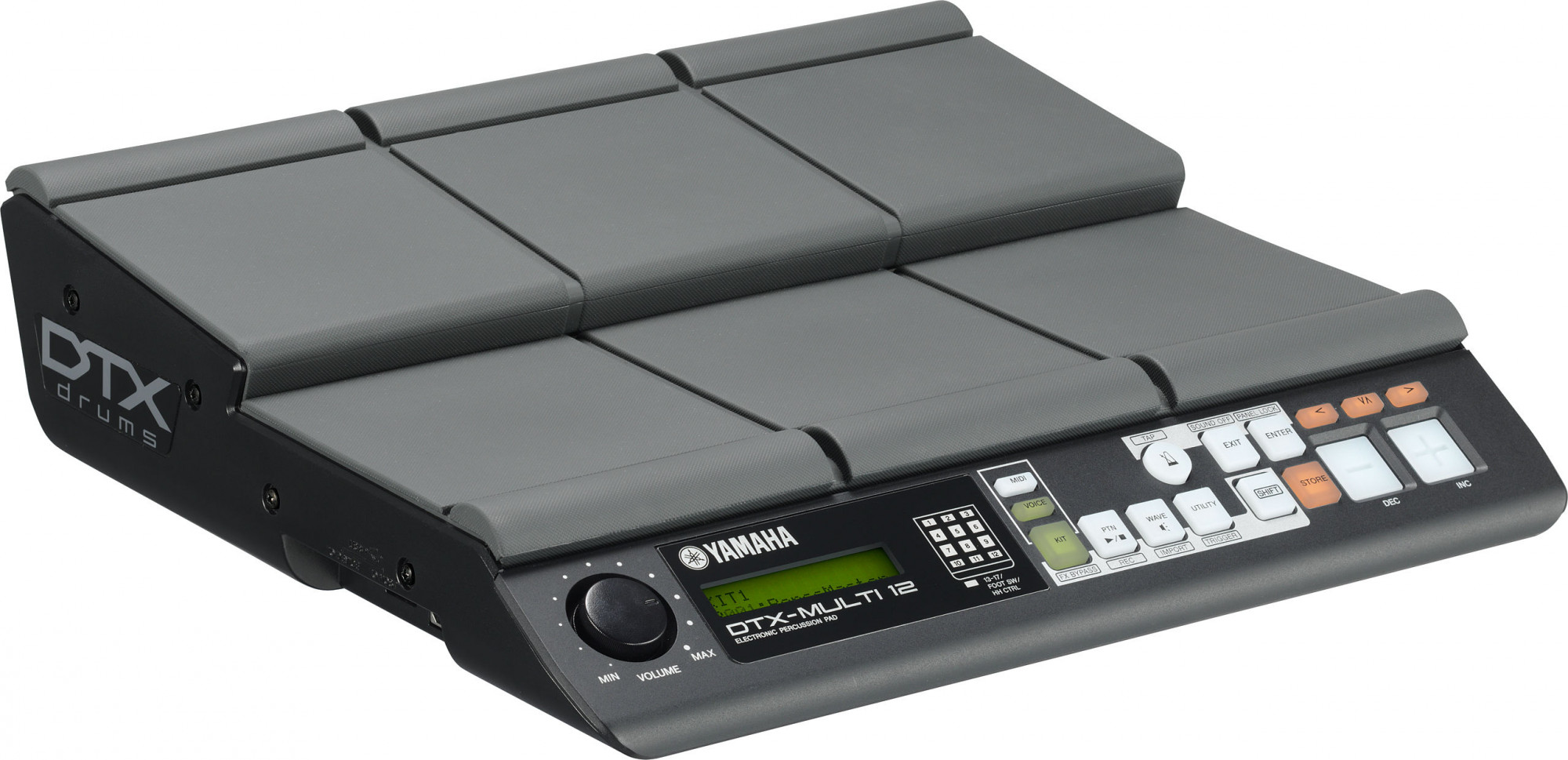

MULTI-Level. MULTI-Play. MULTI-Purpose.
DTX-MULTI 12 features new percussion sounds that have been collected through Yamaha's advanced sampling techniques and ready-to-use effect sounds for a grand total of 1,277 voices. It includes not only digital sounds but also DJ sounds and a rich variety of voices from percussion, chromatic percussion, folk, and acoustic drum instruments. With 128 different MIDI playing patterns from a range of musical genres, you can start and stop patterns by simply striking the pads. Then comes the multiple playing modes that enable performers to express their talent with ease. Explore the Stick mode, hand mode, finger mode and muting feature. In addition to this, the Stack mode stimulates creativity as all notes assigned to a pad can be triggered simultaneously with one strike. The DTX-MULTI 12 deploys Steinberg’s Cubase AI 5 software which can be controlled from the front panel. You can customize the multi pad to suit your needs, it comes with trigger-input jacks that 5 external pads can be connected to including one foot switch jack and one hi-hat controller jack.
MULTI-Voice and MULTI-Effect! -Preset Kit-In addition to a broad spectrum of voices taken from the world renowned, flagship MOTIF series synthesizers, the DTX-MULTI 12 also features many new percussion sounds that have been collected through Yamaha's advanced sampling techniques and ready-to-use effect sounds for a grand total of 1,277 voices. - The DTX-MULTI 12 includes not only digital sounds but also DJ sounds and a rich variety of voices from percussion, chromatic percussion, folk, and acoustic drum instruments. - You can also import WAV and AIFF audio files from a USB memory device and use them as voices. - The DTX-MULTI 12 functions as a sample playback device with 64MB of battery backed Flash ROM. - Together with great-sounding reverb and chorus effects that can be applied to entire drum kits, the DTX-MULTI 12 also features a Variation effect unit that can be used to enhance individual voices in many exciting ways |
|
MULTI-Pattern! -Preset Pattern-The DTX-MULTI 12 comes complete with 128 different MIDI playing patterns (including 3 demo patterns) from a world-wide range of musical genres including folk music, rock, and house. - You can easily start and stop patterns by simply striking the pads. In addition, you can record your own performances as patterns or create patterns on a PC. These patterns can then be assigned to pads. - Using the Tap Tempo function, you can set the tempo for patterns and the click track by simply striking pads. In this way, you can conveniently and intuitively set the tempo that you need. |
|
MULTI-Mode! -Play Modes-The DTX-MULTI 12 provides a number of playing modes and features that enable performers to directly express their art and talent. They are: - Stick mode, optimized for playing the instrument with drum sticks - Hand mode, for conveying subtle expressions through hand percussion. - Finger mode, for extremely intricate finger drumming. - Muting feature, which enables sounds to be muted or changed when a hand is pressed down on a pad as it is struck. |
|
MULTI-Assignment! -Trigger Function-Up to four different voices can be assigned to each pad. - The DTX-MULTI 12 is packed with a multitude of features to stimulate creativity such as Stack mode in which all the notes assigned to a pad are triggered simultaneously with a single strike and Alternate mode in which the notes assigned to the pad are played individually in turn each time it is struck. |
|

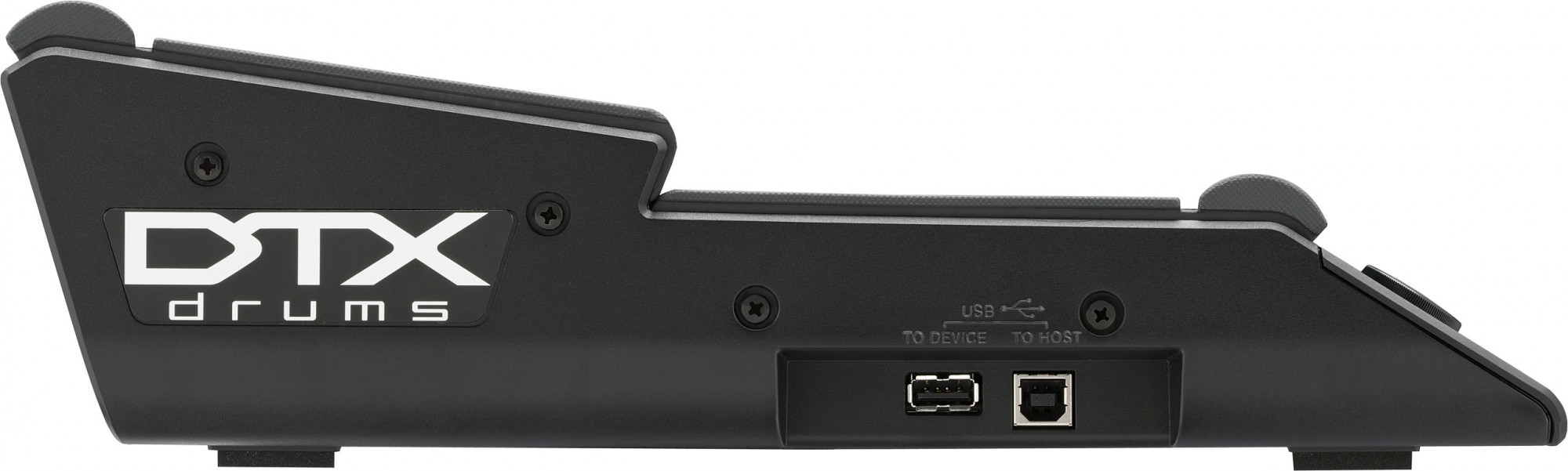

MULTI-Interface! -Music Production-In addition to the MIDI In/Out port, the DTX-MULTI 12 is equipped with a USB TO HOST port that can be connected to a PC with a USB cable (sold separately) and a USB TO DEVICE port that can be save the user kit data on a USB memory. - This connection can be used in a variety of ways. For example, those who have difficulty playing a keyboard can input MIDI data directly to DAW software, and others can play computer software synthesizer sounds by striking the DTX-MULTI 12. - "Cubase AI 5" by Steinberg, a DAW software application, is bundled with the DTX-MULTI 12. You can begin modifying the pitch and rhythm of the MIDI data that you input using the DTX-MULTI 12 and begin composing elaborate pieces of music on the same day you buy the DTX-MULTI 12. - By installing the DTX-MULTI 12 Extension (planned for future release on our Web site), you will be able to control Cubase AI 5 directly from the DTX-MULTI 12 front panel. This extension will dramatically improve your efficiency in music composition. |
|
DTX-M12 | DTX Multi PadDTX-M12 is an amazing Electronic Percussion Pad also known as DTX Multi Pad. This Video starts with UNBOXING of DTX-M12 and then features explanation. This is Product Feature Centric Video which will help you understand and connect with Yamaha DTX-M12 more. |
| DTX-MULTI12 | ||
|---|---|---|
| Dimensions | Width | 345mm |
| Height | 96mm | |
| Depth | 319mm | |
| Weight | Weight | 3.3kg |
| Pad section | ||
| Built-in pads | 12 | |
| External inputs | 5 (three-zone x 1; monaural x 4) | |
| Tone generator | ||
| Maximum Polyphony | 64 notes | |
| Voices | Drum and percussion: 1,061Keyboard: 216 | |
| Effects | Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer | |
| Drum kits | Preset: 50User-defined: 200 | |
| Wave memory | 100 MB (16-bit linear conversion) | |
| Sequencer | ||
| Note Resolution | Quarter note / 480 | |
| Patterns | Preset patterns: 128 phrases (including 3 demo patterns)User-defined patterns: 50 phrases | |
| Sequence formats | ProprietarySMF Format 0 (for loading only) | |
| Sequence capacity | 152,000 notes | |
| Recording method | Real-time overdubbing | |
| Waves | ||
| Readable quantity | 500 | |
| Bit depth | 16 bit | |
| Wave memory | 64 MB | |
| Maximum size | Mono sample: 2 MBStereo sample: 4 MB | |
| Sample formats | Proprietary, WAV, and AIFF | |
| Other | ||

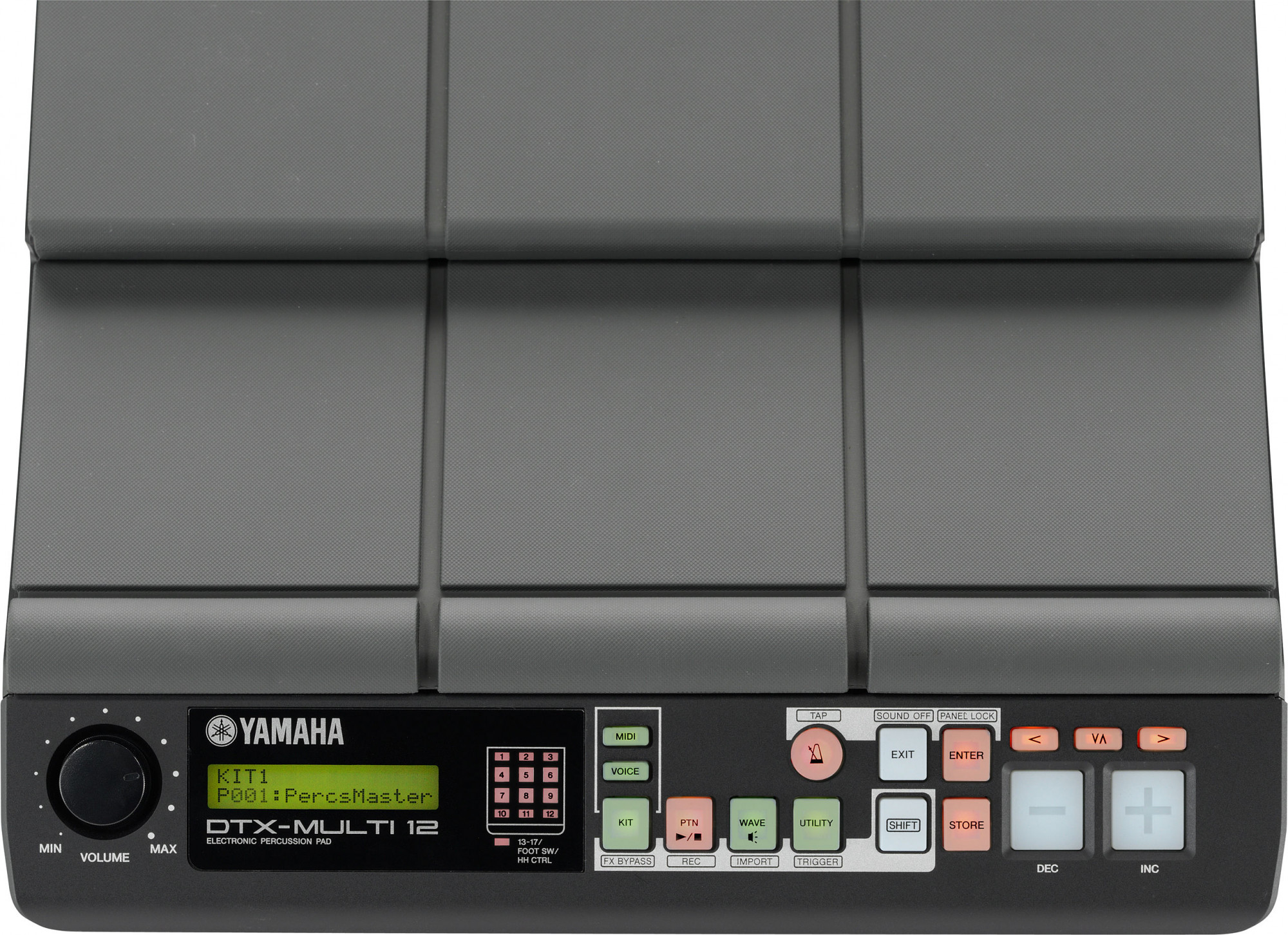

| Display | Backlit LCD with 2 rows of 16 characters | |

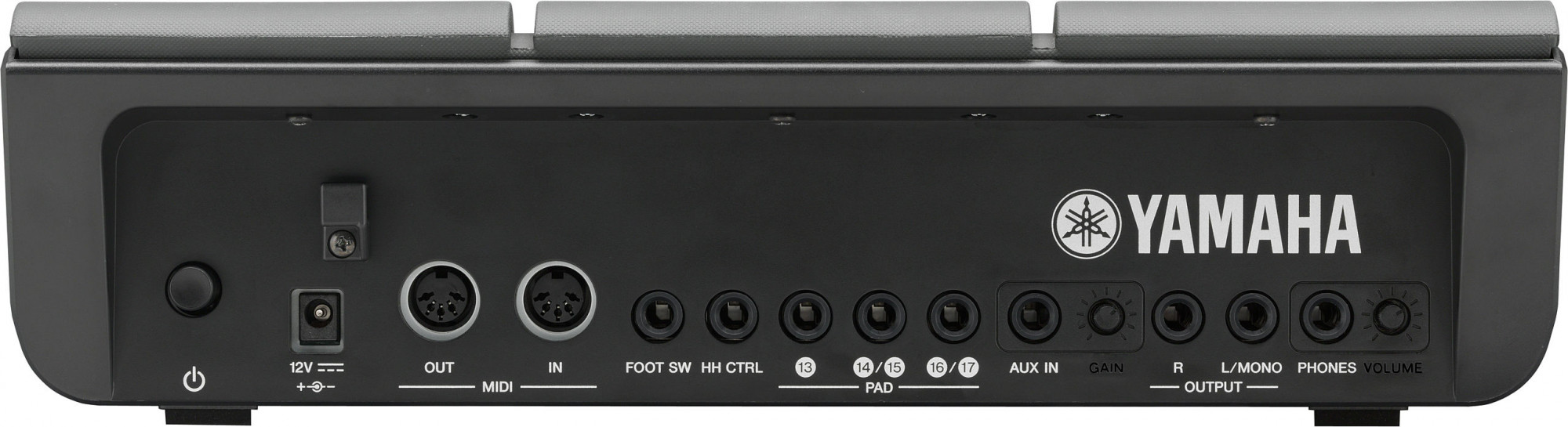

| Connectors | PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch)PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger)HI-HAT CONTROL jack (standard stereo-phone plug)FOOT SW jack (standard stereo-phone plug)OUTPUT L/MONO and R jacks (standard phone plugs)PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN. | |
| Power Consumption | 9W | |
| Package Contents | Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5) | |
| Trigger section | ||
| Pad functions | Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages | |
| Click-track | ||
| Tempo | 30 to 300 BPM. Tap tempo functionality | |
| Beats | 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16 | |
| Note timing | Accent notes, quarter notes, eight notes, sixteenth notes, triplets | |
