Capture sounds using the AUX Input and play them back from the keyboard. Easy-to-operate Quick Sampling via AUX-In terminal so that you can play your favorite external sounds!
You can perform the latest music styles from the keyboard like a DJ - lay down a beat, tweak the groove, adjust the mix and get the dance party started!
Yamaha has a proud history of manufacturing just about every kind of musical instrument. When it comes to reproducing the sound of these instruments in a keyboard, the results are detailed and high-quality.

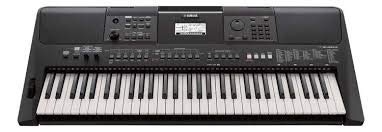

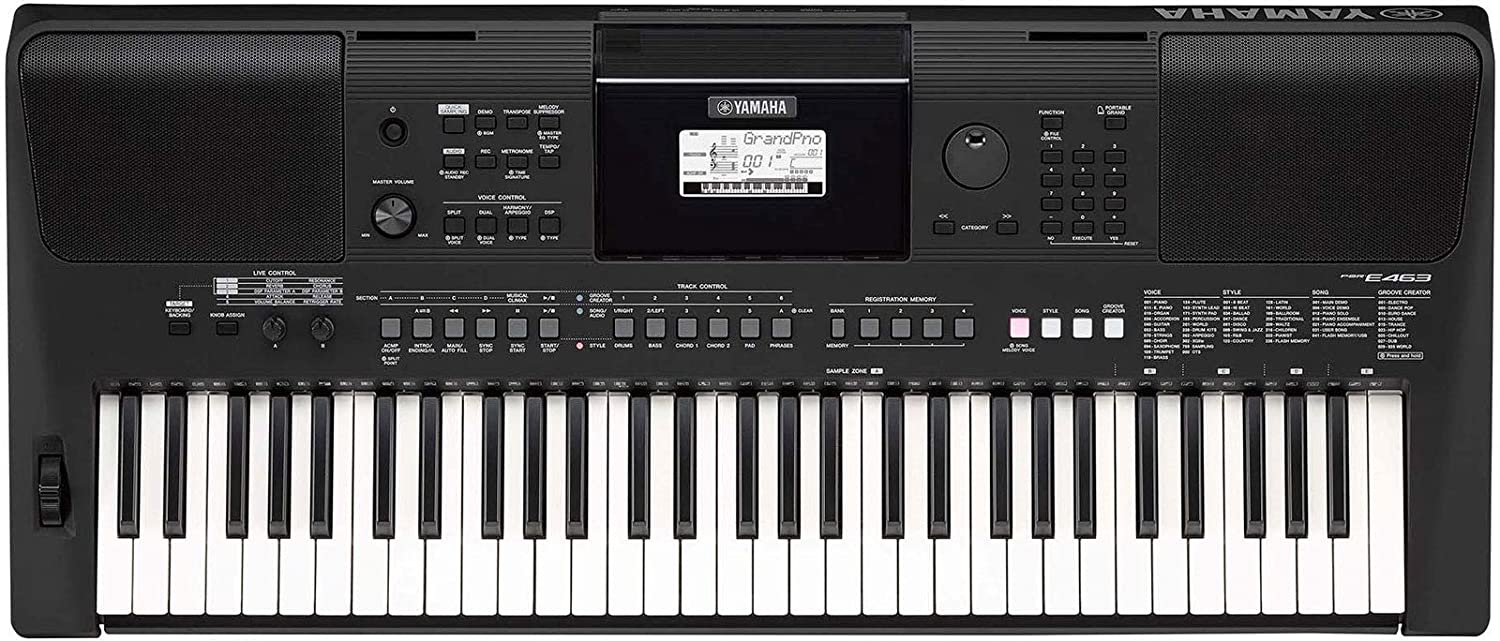

The PSR-E463 features a comprehensive library of 758 instrument Voices that will allow you to enjoy playing any musical genre.
235 auto Accompaniment Styles, including 10 new local Styles and 5 contemporary Styles inherited from Genos, provide real-time band backing tracks based on the chords you play.
The Registration Memory function allows you to save 4 x 8 panel settings for instant recall.
Change sounds on-the-fly by switching the effect destination!

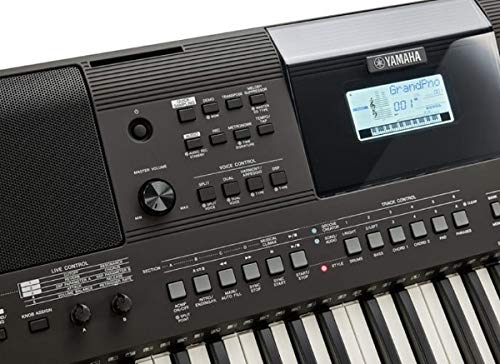

Two assignable, real-time control knobs let you filter and adjust your sound just like an analog synthesizer.
10 DSP effects can be assigned and controlled by the knobs for dynamic and expressive live performance.
The Pitch Bend wheel adjusts the pitch of the sound bringing voices like the Guitar, Sax and Trumpet to life.
"Target" button supports quick target change of effect destination.
You can record your performances to USB Flash Drives. The USB TO DEVICE terminal on the instrument lets you load and save your settings and songs to a USB flash drive, as well as transfer data from your PC.
The PSR-E463 features audio transfer through the USB TO HOST terminal*. You can record your performance to your computer or smart device.
Connecting to your iOS device adds a new dimension of MIDI control with apps.
Connect an external audio player to the AUX IN jack and you can play along with your favorite tunes. The built-in, advanced Melody Suppressor lowers the volume of vocals and melody lines of the original recordings, leaving that part open for you to play or sing**.
*For iOS device connection, refer to the "iPhone / iPad Connection Manual"
**Depending on the song, the volume of the melody part may not be affected.
| PSR-E463 | ||
|---|---|---|
| Body | Color | Black |
| Dimensions | Width | 946 mm (37-1/4") |
| Height | 139 mm (5-1/2") | |
| Depth | 404 mm (15-15/16) | |
| Weight | Weight | 6.6 kg (14 lb, 9 oz) not including batteries |
| Keyboard | Number of Keys | 61 |
| Touch Response | Soft, Medium, Hard, Fixed | |
| Other Controllers | Pitch Bend | Yes |
| Control Knobs | Yes | |
| Display | Type | LCD (Liquid Crystal Display) |
| Language | English | |
| Panel | Language | English |
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 48 |
| Preset | Number of Voices | 758 (237 Panel Voices + 24 Drum/SFX kits + 40 Arpeggio + 457 XGlite voices) |
| Featured Voices | 8 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voices | |
| Compatibility | GM | Yes |
| XGlite | Yes | |
| Types | DSP | 10 types (assignable on control knobs) |
| Reverb | 12 types | |
| Chorus | 5 types | |
| Master EQ | 6 types | |
| Harmony | 26 types | |
| Functions | Dual/Layers | Yes |
| Split | Yes | |
| Arpeggio | 150 types | |
| Melody Suppressor | Yes | |
| Crossfade | Yes (for Internal/AUX IN) | |
| Preset | Number of Preset Styles | 235 |
| Fingering | Multi finger | |
| Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF | |
| File Format | Style File Format (SFF) | |
| Other Features | One Touch Setting (OTS) | Yes |
| Expandability | Expansion Style | 10 |
| Preset | Number of Groove | 35 |
| Number of Sections | 5 (4 Sections + 1 Musical Climax/Ending) | |
| Preset | Number of Preset Songs | 30 |
| Recording | Number of Songs | 10 |
| Number of Tracks | 6 (5 Melody + 1 Style/Groove Creator) | |
| Data Capacity | Approx. 19,000 notes (when only melody tracks are recorded) | |
| Recording Function | Yes | |
| Compatible Data Format | Playback | SMF (Formats 0 & 1) |
| Recording | Original File Format (SMF 0 conversion function) | |
| Recording Time (max.) | 80 minutes (approx. 0.9 GB) per Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Sampleing Type | Normal, Oneshot, Loop | |
| Samples (Preset/Usesr) | 5 | |
| Sampling Time | Approx. 9.6 sec | |
| Sampling Sources | AUX IN | |
| Sampling Format | Original File Format (16 bit, stereo) | |
| Sampling Rate | 44.1 kHz | |
| USB audio interface | 44.1 kHz, 16 bit, stereo | |
| Registration | Number of Buttons | 4 (x 8 banks) |
| Lesson/Guide | Yamaha Education Suite (Y.E.S.) | Lesson 1 3 (Listening, Timing, Waiting), Repeat & Learn, Chord Dictionary |
| Overall Controls | Metronome | Yes |
| Tempo Range | 11 280 | |
| Transpose | -12 to 0, 0 to +12 | |
| Tuning | 427.0 440.0 453.0 Hz (approx. 0.2 Hz increments) | |
| Scale Setting | Yes | |
| Miscellaneous | PIANO Button | Yes (Portable Grand Button) |
| Storage | Internal Memory | Approx. 1.73 MB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | DC IN 12 V |
| AUX IN | Yes (Stereo-mini) | |
| Headphones | x 1 (PHONES/ OUTPUT) | |
| Sustain Pedal | Yes | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo) | |
| Amplifiers | 6 W + 6 W (When using PA-150 AC adaptor) | |
| Speakers | 12 cm x 2 | |
| Power Supply | AC Adaptors (PA-150 or an equivalent recommended by Yamaha) or batteries (Six AA size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries) | |
| Power Consumption | 8 W (When using PA-150 AC adaptor) | |
| Auto Power Off Function | Yes | |
| Included Accessories | Music Rest | Yes |
| Song Book | Download from website | |
