| Color/Finish |
| Body |
Color |
|
Black |
| Size/Weight |
| Dimensions |
Width |
|
1017 mm (40") |
| Height |
|
139 mm (5.5") |
| Depth |
|
431 mm (17") |
| Weight |
Weight |
|
11.5 kg (25.35 lb) |
| Control Interface |
| Keyboard |
Number of Keys |
|
61 |
| Type |
|
Organ (FSB), Initial Touch |
| Touch Response |
|
Normal, Soft 1, Soft 2, Hard 1, Hard 2 |
| Other Controllers |
Joystick |
|
Yes |

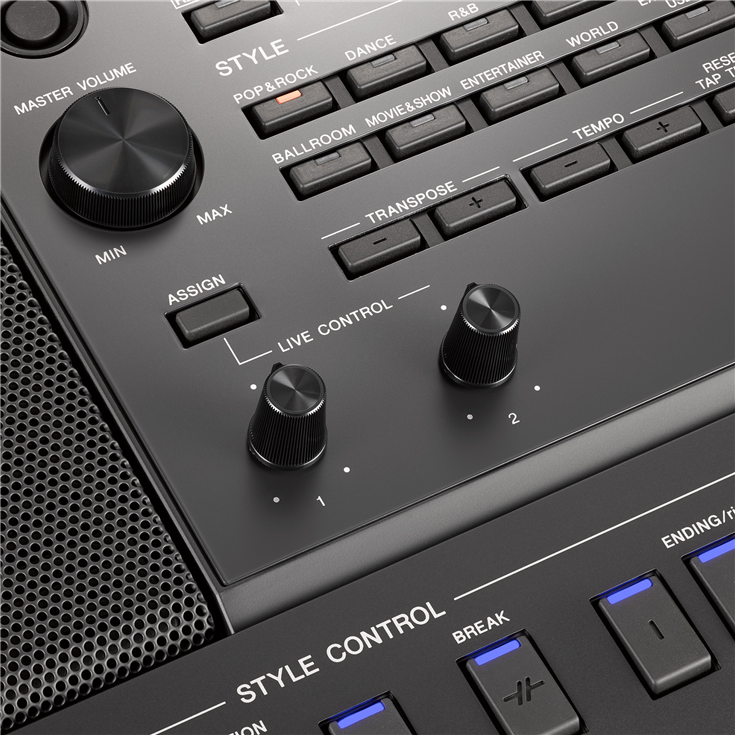

| Control Knobs |
|
2 (assignable) |
| Pitch Bend |
|
- |
| Modulation |
|
- |

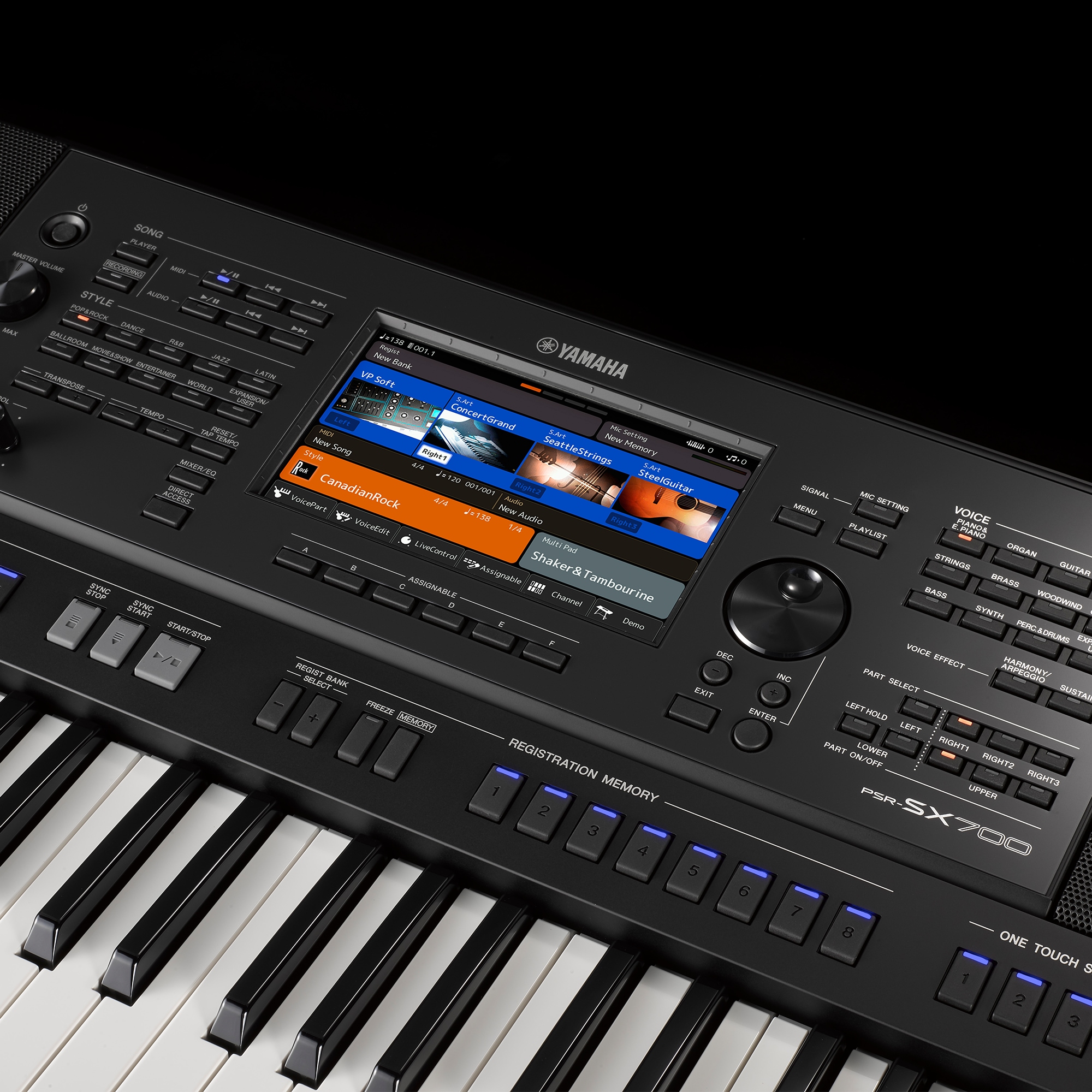

| Display |
Type |
|
TFT Color Wide VGA LCD |
| Size |
|
800 x 480 dots (7 inch) |
| Touch Screen |
|
Yes |
| Color |
|
Color |
| Language |
|
English, German, French, Spanish, Italian |
| Panel |
Language |
|
English |
| Voices |
| Tone Generation |
Tone Generating Technology |
|
AWM Stereo Sampling |
| Polyphony |
Number of Polyphony (Max.) |
|
128 |
| Preset |
Number of Voices |
|
986 Voices + 41 Drum/SFX Kits |
| Featured Voices |
|
131 S.Art!, 30 Mega Voice, 31 Sweet! Voices, 74 Cool! Voices, 89 Live! Voices, 24 Organ Flutes! |
| Compatibility |
XG |
|
Yes (for Song playback) |
| GS |
|
Yes (for Song playback) |
| GM |
|
Yes |
| GM2 |
|
Yes |
| Expandability |
Expansion Voice |
|
Yes (approx. 400 MB) |
| Editing |
|
Voice Set |
| Part |
|
Right 1, Right 2, Right 3, Left |
| Effects |
| Types |
Reverb |
|
59 Presets + 30 User |
| Chorus |
|
106 Presets + 30 User |
| DSP |
|
322 Presets + 30 User |
| Insertion Effect |
|
1-5: 322 Presets + 30 User |
| Master Compressor |
|
5 Presets + 30 User |
| Master EQ |
|
5 Presets + 30 User |
| Part EQ |
|
28 Parts |
| Others |
|
Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1 |
| Arpeggio |
|
Yes |
| Vocal Harmony |
Number of Presets |
|
- |
| Number of User Settings |
|
- |
| Accompaniment Styles |
| Preset |
Number of Preset Styles |
|
400 |
| Featured Styles |
|
353 Pro Styles, 34 Session Styles, 10 DJ Styles, 3 Free Play |
| Fingering |
|
Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard |
| Style Control |
|
INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 |
| Other Features |
One Touch Setting (OTS) |
|
4 for each Style |
| Chord Looper |
|
- |
| Style Section Reset |
|
Yes |
| Unison & Accent |
|
- |
| Expandability |
Expansion Style |
|
Yes (Internal Memory) |
| Expansion Audio Style |
|
- |
| Compatibility |
|
Style File Format, Style File Format GE |
| Songs |
| Preset |
Number of Preset Songs |
|
5 Sample Songs |
| Recording |
Number of Songs |
|
Unlimited (depends on the drive capacity) |
| Number of Tracks |
|
16 |
| Data Capacity |
|
Approx. 3 MB/Song |
| Recording Function |
|
Quick Recording, Multi Recording, Step Recording |
| Compatible Data Format |
Playback |
|
SMF (Format 0 & 1), XF |
| Recording |
|
SMF (Format 0) |
| Multi Pads |
| Preset |
Number of Multi Pad Banks |
|
226 Banks x 4 Pads |
| Audio |
Audio Link |
|
Yes |
| Functions |
| Registration |
Number of Buttons |
|
8 |
| Control |
|
Registration Sequence, Freeze |
| Playlist |
Number of Records |
|
2500 (max.) Records per Playlist file |
| Lesson/Guide |
Lesson/Guide |
|
Follow Lights, Any Key, Karao-Key, Your Tempo |
| Search |
|
Registration Bank |
| Demo/Help |
Demonstration |
|
Yes |
| Overall Controls |
Metronome |
|
Yes |
| Tempo Range |
|
5 - 500, Tap Tempo |
| Transpose |
|
-12 0 +12 |
| Tuning |
|
414.8 440 466.8 Hz |
| Octave Button |
|
Yes |
| Scale Type |
|
9 types |
| Sub Scale Setting |
|
- |
| Bluetooth |
|
- |
| Miscellaneous |
Direct Access |
|
Yes |
| Text Display Function |
|
Yes |
| Wallpaper Customization |
|
Yes |
| Display Out |
|
Yes (by using a commercially available USB display adaptor) * For a list of compatible devices, access the Yamaha Downloads website. |
| Voices |
Harmony/Echo |
|
Yes (with Arpeggio) |
| Panel Sustain |
|
Yes |
| Mono/Poly |
|
Yes |
| Voice Information |
|
Yes |
| Styles |
Style Creator |
|
Yes |
| Style Recommender |
|
Yes |
| OTS Information |
|
Yes |
| Songs |
Score Display Function |
|
Yes |
| Lyrics Display Function |
|
Yes |
| Song Creator |
|
Yes |
| Multi Pads |
Multi Pad Creator |
|
Yes |
| Audio Recorder/Player |
Recording Time (max.) |
|
80 minutes/Song |
| Recording |
|
.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo) |
| Playback |
|
.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) |
| Lyrics Display Function |
|
Yes (.mp3 only) |
| Time Stretch |
|
Yes |
| Pitch Shift |
|
Yes |
| Vocal Cancel |
|
Yes |
| Storage and Connectivity |
| Storage |
Internal Memory |
|
Yes (approx. 1 GB) |
| External Drives |
|
USB Flash Memory (via USB to DEVICE) |

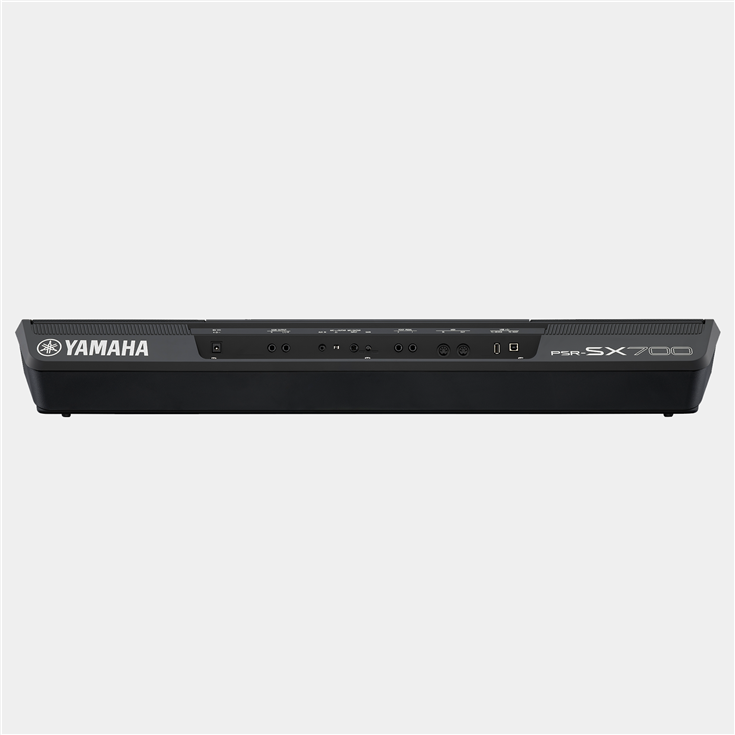

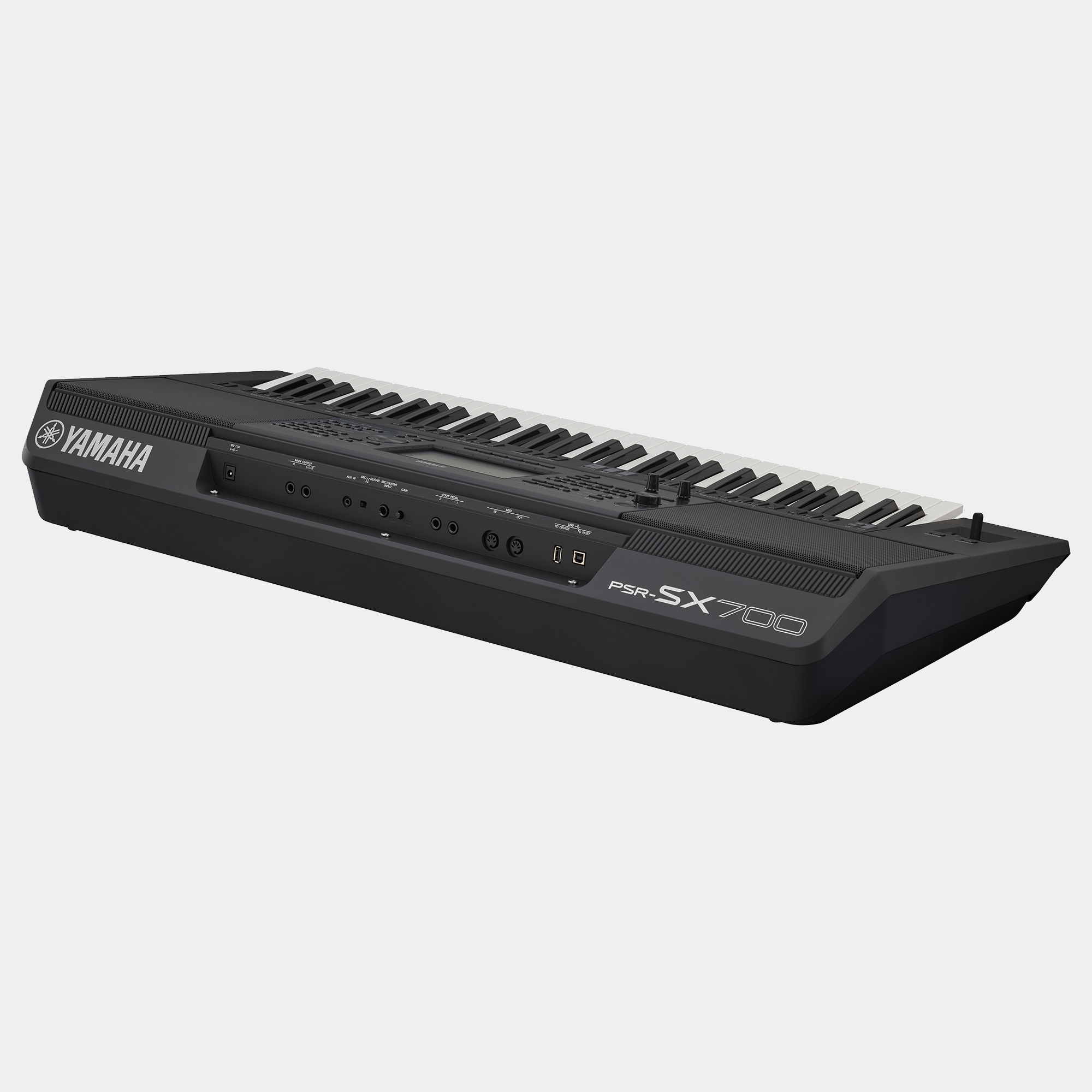

| Connectivity |
Headphones |
|
Yes |
| FOOT PEDAL |
|
1 (SUSTAIN), 2 (ARTICULATION), Function Assignable |
| Microphone |
|
Microphone/Guitar x 1 |
| MIDI |
|
IN, OUT |
| AUX IN |
|
Stereo mini jack |
| LINE OUT |
|
MAIN OUTPUT (L/L+R, R) |
| USB TO DEVICE |
|
Yes |
| USB TO HOST |
|
Yes |
| Amplifiers and Speakers |
| Amplifiers |
|
15 W x 2 |
| Speakers |
|
13 cm x 2 + 5 cm x 2 |
| Power Supply |
| Power Supply |
|
PA-300C or an equivalent recommended by Yamaha |
| Power Consumption |
|
21 W |
| Auto Power Off Function |
|
Yes |
| Accessories |
| Included Accessories |
|
Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.) |
