The SHS-500 features 30 instrument Voices that are essential to any kind of music genre, including synthesizers, guitars, basses, pianos, strings, and wind instruments. The expressive 37-key mini keyboard provides a premium feel and response for fast, accurate, and natural playing even when you are standing while performing.
30 high-quality Voices (instrument sounds) with 48-note polyphony |
|
Assignable real-time control knob, Pitch Bend, and Modulation wheel | |
USB Audio & MIDI interface |
|
JAM function |
| SHS-500 | ||
|---|---|---|
| Color/Finish | ||
| Body | Color | Red |

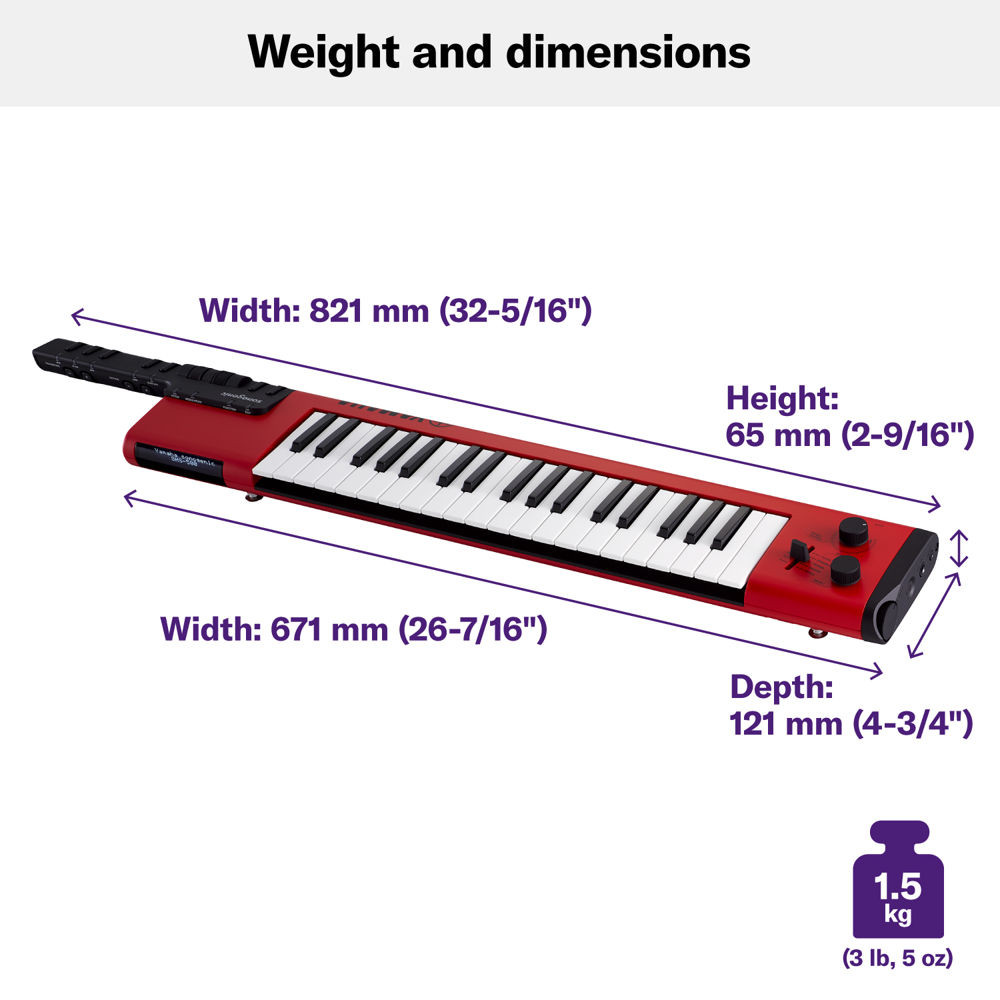

| Size/Weight | ||
| Dimensions | Width | 821 mm |
| Height | 65 mm | |
| Depth | 121 mm | |
| Weight | Weight | 1.5 kg (not including batteries) |
| Control Interface | ||
| Keyboard | Number of Keys | 37 |
| Touch Response | Soft, Medium, Hard, Fixed | |
| Other Controllers | Pitch Bend | Yes |
| Modulation | Yes | |
| Control Knobs | Yes | |
| Display | Type | LCD |
| Language | English | |
| Panel | Language | English |
| Functions | ||
| Voices | Panel Sustain | Yes |
| Overall Controls | Transpose | -12 to 0, 0 to +12 |
| Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2Hz increments) | |
| USB audio interface | 44.1 kHz, 16 bit, stereo | |

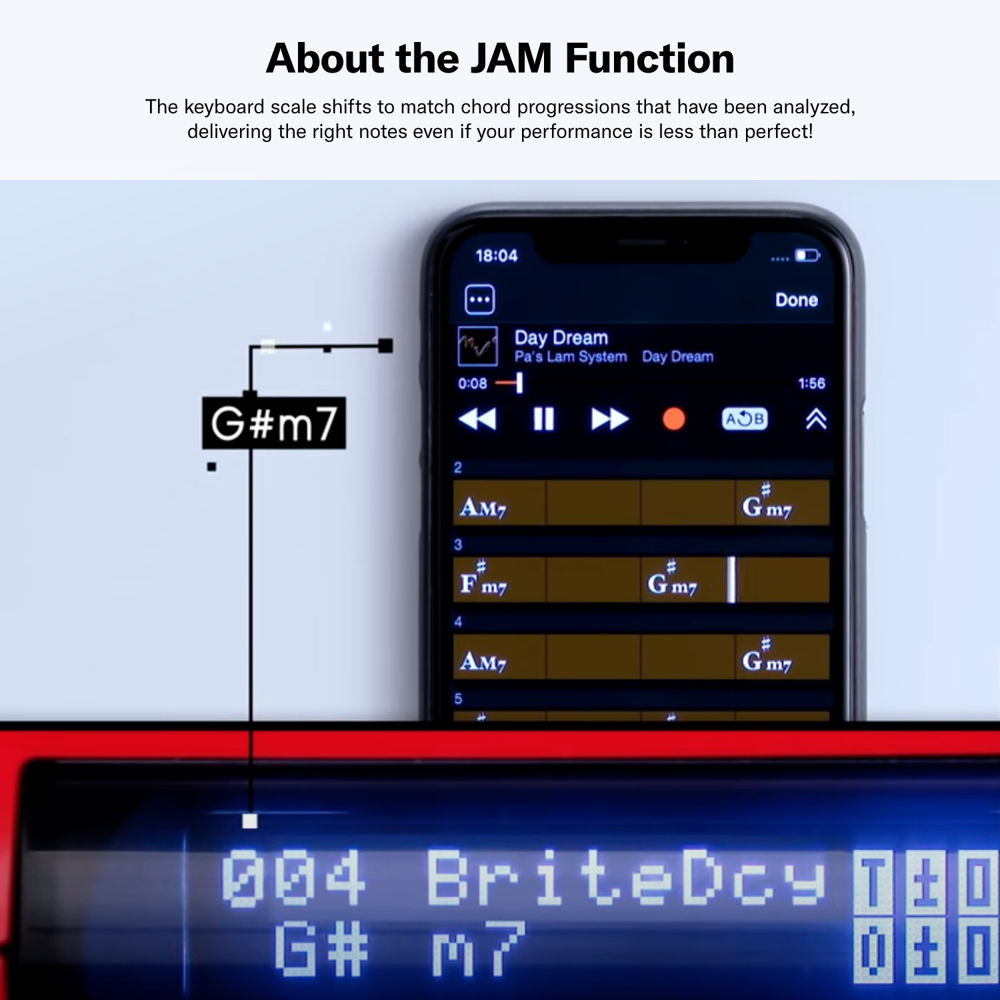

| JAM | JAM Function (5 mode) | |
| Voices | ||
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 48 |
| Preset | Number of Voices | 30 |
| Effects | ||
| Types | DSP | 9 types (assignable on control knobs) |
| Master EQ | 4 types | |
| Songs | ||
| Preset | Number of Preset Songs | 3 |

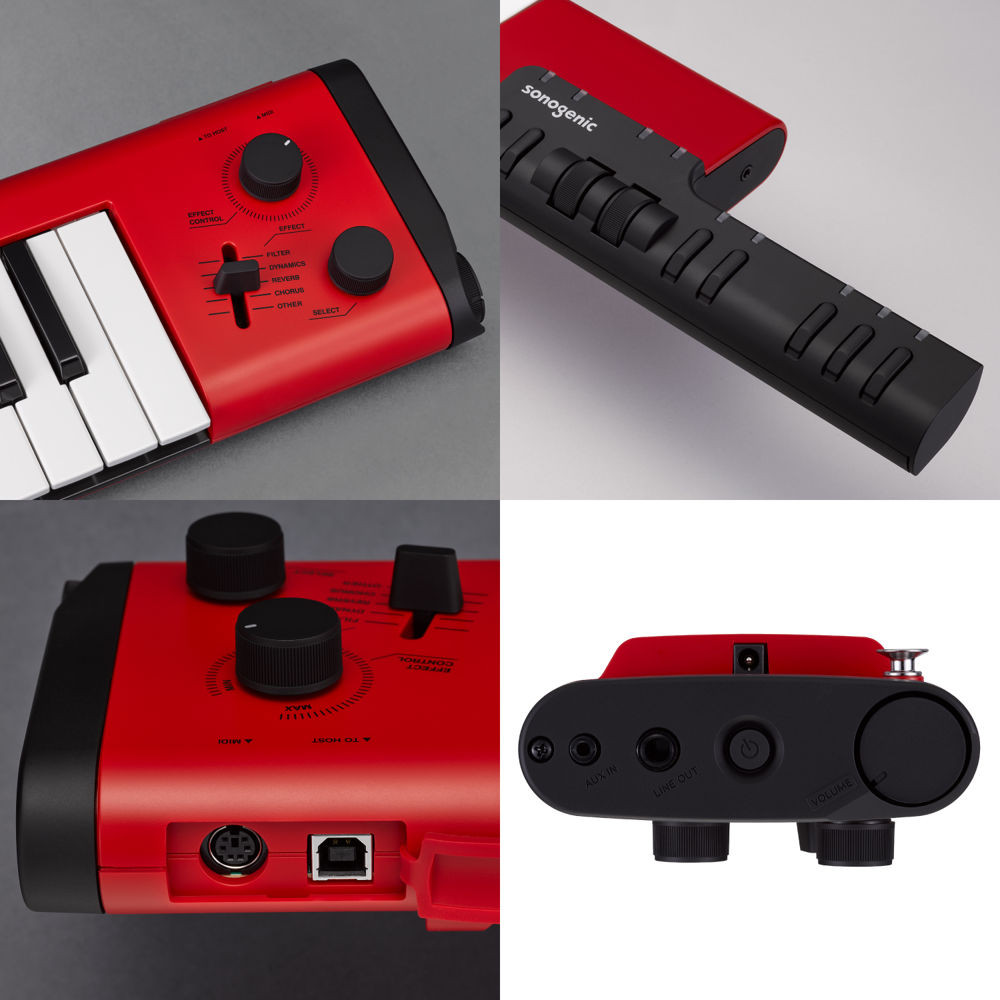

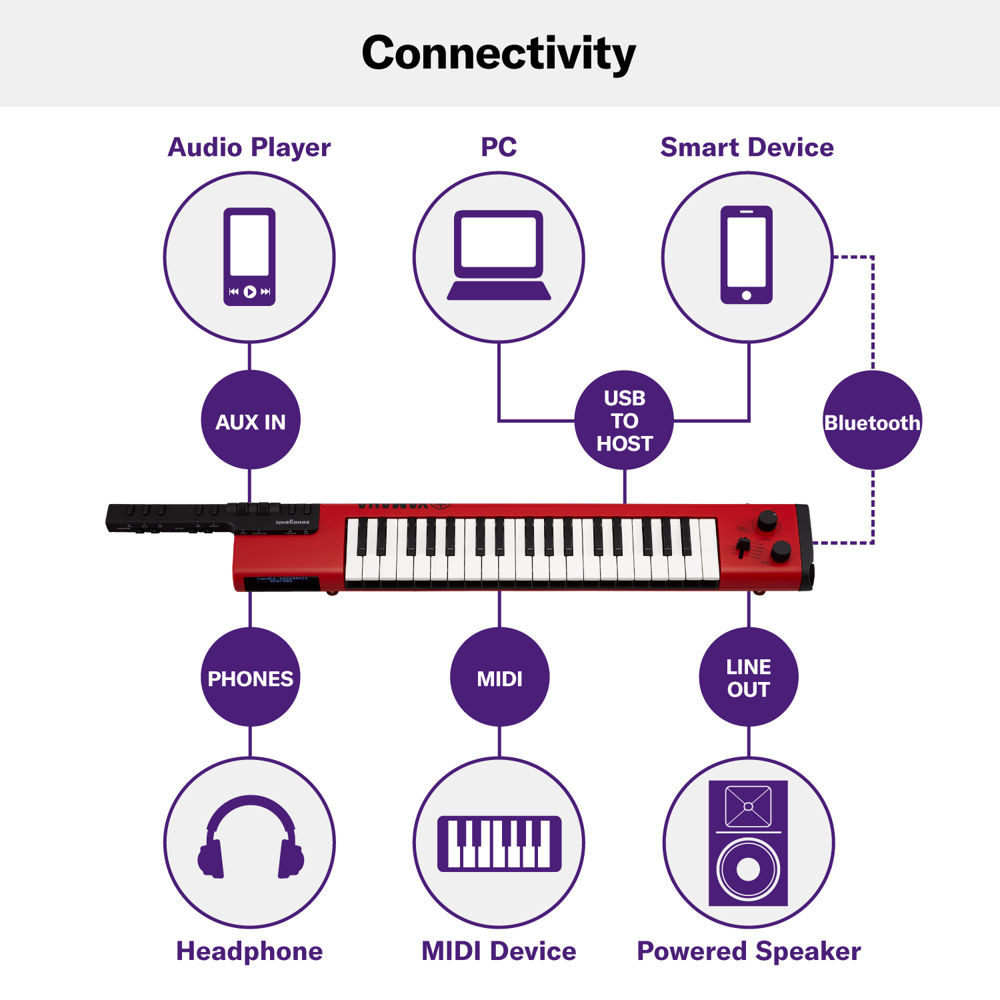

| Storage and Connectivity | ||
| Connectivity | DC IN | 12V |
| Headphones | Yes (stereo-mini) | |
| LINE OUT | Yes (mono) | |
| AUX IN | Yes (stereo-mini) | |
| USB TO HOST | Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo) *The MIDI control messages that the SHS-500 can send and receive are different from those of the SHS-300. For information on the MIDI control messages that the SHS-500 can send and receive, please refer to the “SHS-500 MIDI Reference”. | |
| Amplifiers and Speakers | ||
| Amplifiers | 0.7W | |
| Speakers | 3.6 cm | |
| Power Supply | ||
| Power Supply | AC Adaptors (PA-130 or an equivalent recommended by Yamaha) or batteries (Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries) | |
| Power Consumption | 3W (When using PA-130 AC adaptor) | |
| Auto Power Off Function | Yes | |
| Accessories | ||
