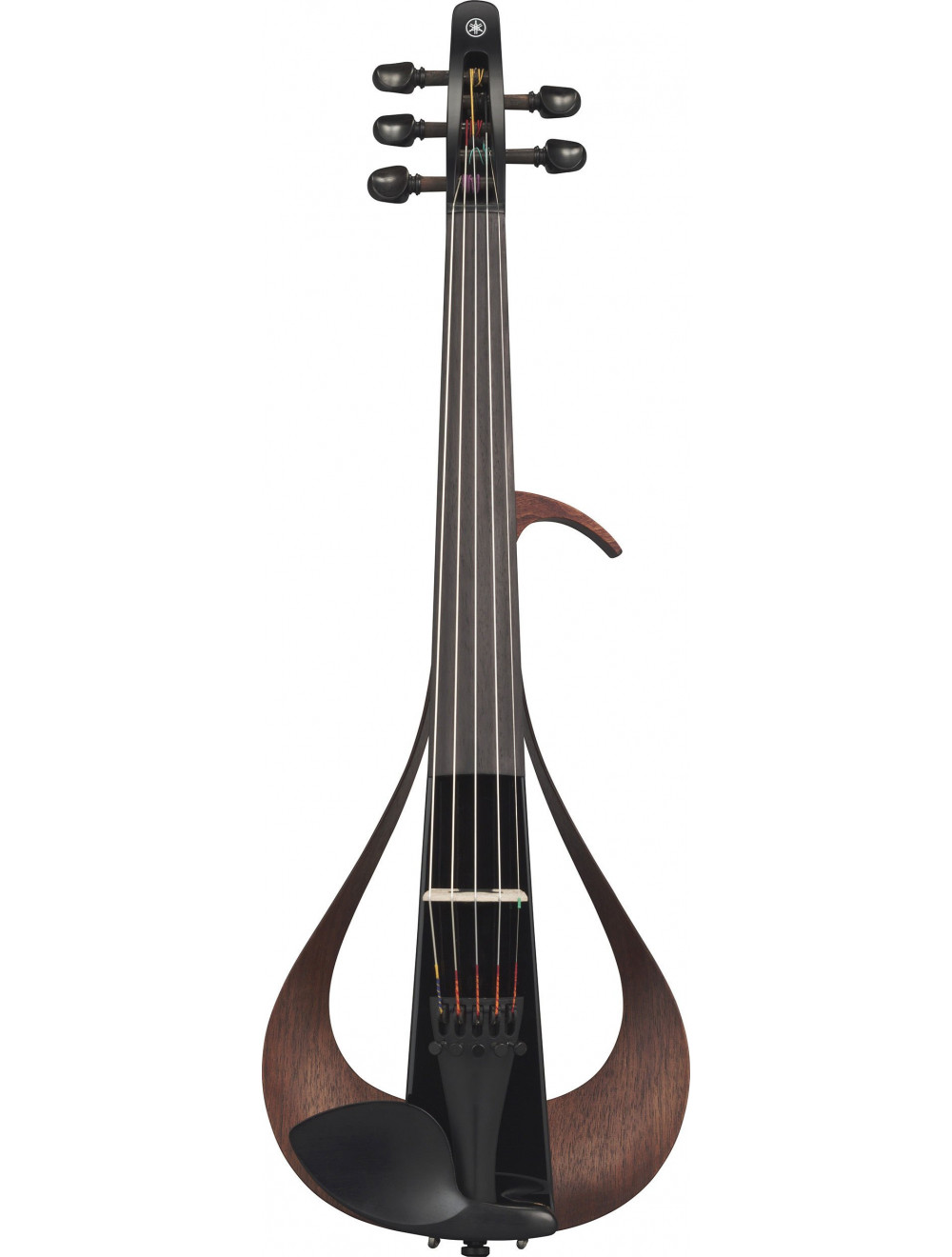

Advanced Yamaha wood processing technology has resulted in the development and production of a next-generation electric violin that combines innovative beauty with solid live-performance features and potential. It is an excellent choice for music lovers who are looking for an instrument that will allow them to explore and enjoy genres beyond the classics.
DesignCombination of innovative beauty and playability offers you new possibility of performance. |
|
Elegant design for impressive on-stage presenceMöbius strip like design provides continuity between front and back.Three-dimensional form designed to appeal to the audience when performing live. |
|
Easy switchover from traditional acoustic violinThe same shape as acoustic violins accepts standard shoulder/chin rests and tailpiece. |
|
Organic form enhances the feel and qualities of the woods usedFinished to enhance the natural beauty of the materials used (NT model). |
|
SoundNatural sound and response of YEV-104 allows performers to freely bring out their musical expression. |
|
BodyCarefully selected maple with mahogany and spruce in a 5-layer construction results in excellent response and natural overall sound. * The black model has the same construction, but the layers cannot be seen. |
|
FrameA 5-layer oil-finished walnut frame offers an ideal blend of flexibility and strength in a design that is not only striking, but also contributes to natural musical resonance. |
|
PickupThe same type of high-output passive bridge pickup that is a highly regarded feature of the SV250 is used. While effectively picking up the sound of the entire instrument, it also captures the instrument’s response and expressive bowing nuances employed by the player. * The black model has the same construction, but the layers cannot be seen. |
|
Selector SwitchSelects direct output of the pickup signal, or output via the instrument’s volume control. Direct output delivers the instrument’s full sonic potential, with rich lows and punchy impact. |
| YEV-105 | ||
|---|---|---|
| Size/Weight | ||
| Dimensions | Width | 204mm |
| Height | 607mm | |
| Depth | 120mm | |
| Weight | Weight | approx. 590 g |
| Body | ||
| Size | 4/4 | |
| Body | Spruce/Mahogany/Maple | |
| Side/Frame | Walnut | |
| Neck | Maple | |
| Finger Board | Composite | |
| Parts | ||
| Bridge | Maple with built-in Piezo-electric Pickup | |
| Tuning Pegs | Ebony | |
| Tailpiece | Synthetic Resin (equipped with fine tuners) | |
| Chin Rest | Composite | |
| Strings | D’Addario Zyex (D’Addario Helicore on C-string) | |
| Design/Architecture Detail | ||
| Pick Up System | Bridge w/ Built-in Piezo-electric Pickup | |
| Functions | ||
| Controls | Volume Control, Selector Switch (Volume Control activation switch) | |
| Storage and Connectivity | ||
| Output | Passive Output (Φ6.3 Standard Monaural) | |
